LCD Screen 600V PM8909C AC Voltage Detector Illumination lamp With Screwdriver

Name: LCD Screen 600V PM8909C AC Voltage Detector Illumination lamp With Screwdriver
Brand: PEAKMETER
Price: 1 USD

China LCD Screen 600V PM8909C AC Voltage Detector Illumination lamp With Screwdriver wholesale

Brand Name : PEAKMETER

Model Number : PM8909C

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T

Supply Ability : 150,000 Pcs Per Month

Delivery Time : 5-40 work days

Packaging Details : Product Size 156mm x20mm x20mm Product Weight Approx. 45g

Frequency : 50Hz/60Hz

Function 1 : Auto Power Off

Measuring Range : 12-1000V/48-1000V

Function 2 : Zero/Live Wire Judgment

NCV Sensitivity : High, Medium, low sensitivity

Product Name : Digital Voltage Detector

Contact Now

Pen-type Digital AC Voltage Detector with LCD Screen Flashing ,equipped with screwdriver

Features of Digital Voltage Detector

Flash Light
Frequency Measurement
Low Battery Indication
Zero/Live Wire Judgment
NCV Sensitive Indication

SPECIFICATIONS
AC voltage detection range	About 12～1000V
Frequency	50Hz/60Hz
Alarm Mode	Sound and light alarm
Torch	White LED illumination lamp
Auto power off	√
Low battery indication	√
Zero/live wire judgment	According to the signal strength, strong signal is live wire
NCV intensity	Selecting 3 types of sensitivity(low, mid ,high)
NCV intensity indication mode	To indicate weak, medium, or strong voltage signal, the instrument uses different single on screen and buzzle frequency
Service Temperature	0～40℃
Storage Temperature	-10～50℃
Altitude	<2000m
Security level	CE CAT. Ⅲ 1000V/CAT. Ⅳ 600V
Power	2x1.5V AAA batteries
Size	156x20x20mm
Weight	About 45g

Product Description of Digital Voltage Detector

PM8909C is a portable tester with screwdriver. The tester will automatically select 3 kinds of sensitivities during NCV measurement and will be displayed on the LCD screen. The sound and light alarms of different frequencies indicate AC voltages of different intensities. The flashlight function makes it easy for the user to find the location to be measured in dark environments. The tester is equipped with a replaceable screwdriver, which is all-in-one, portable and compact.

Distinguish the Neutral wire and Live wire automatically.
Sound and LCD screen flashing alarm, through the different alarm sound and display in different cells to express high, medium and low voltage intensity.
Professional AC Voltage Detector with NCV Detection.
Range of Voltage Detection is from 12V to 1000V AC,48Vto 1000V AC.
Sound and light instructions.
Rotatable Battery Cover, Replacing the battery easier.
Its designed is according to EN61010-1-2-030, EN61010-2-033, and CAT.III1000V Concerning Safety Requirements.
Equiped with Foldable Screwdriver
Mini and compact pen-type tester, easy to carry.

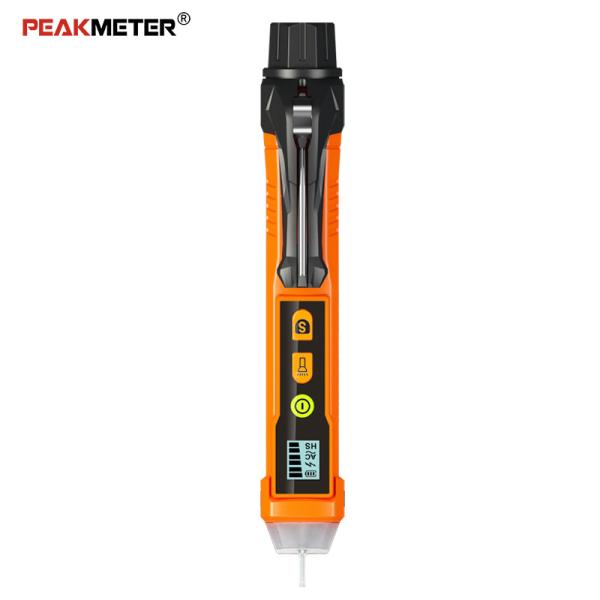

Detailed Images of Digital Voltage Detector

Our Target

We aim to produce intelligent instruments, provide high quality services, and become an innovative manufacturer.

R&D Team

Our R&D team have over 20 years R&D experience in instrument industry .

Mission

Our mission is to get our work done well to become customer’s reliable business friend. S.E.Q( Service , Economic pricing , Quality ) is our concern , we know what you need ,and we know what we have .
